Data Modeling With Apache Cassandra + Docker

Data Modeling With Apache Cassandra + Docker - Featured image

🚀 Data Modeling With Apache Cassandra + Docker

ERD project
ERD project Sparkify

Overview

 this project, we create data modeling with Apacahe Cassandra and build ETL pipeline using python. Study Case : A startup in indonesia wants to analyze the data they have been collecting on songs and user csv on their new music streaming app. Currently, this startup collecting data log events in csv format and the analytics team is particularly interested in understanding what songs user are listening to.

Song Dataset

Songs dataset is a subset of [Million song dataset]((http://millionsongdataset.com/)

Sample record:

{"num_songs": 1, "artist_id": "ARJIE2Y1187B994AB7", "artist_latitude": null, "artist_longitude": null, "artist_location": "", "artist_name": "Line Renaud", "song_id": "SOUPIRU12A6D4FA1E1", "title": "Der Kleine Dompfaff", "duration": 152.92036, "year": 0}

Log Dataset

Logs dataset is generated by Event Simulator

Sample Record :

{"artist": null, "auth": "Logged In", "firstName": "Walter", "gender": "M", "itemInSession": 0, "lastName": "Frye", "length": null, "level": "free", "location": "San Francisco-Oakland-Hayward, CA", "method": "GET","page": "Home", "registration": 1540919166796.0, "sessionId": 38, "song": null, "status": 200, "ts": 1541105830796, "userAgent": "\"Mozilla\/5.0 (Macintosh; Intel Mac OS X 10_9_4) AppleWebKit\/537.36 (KHTML, like Gecko) Chrome\/36.0.1985.143 Safari\/537.36\"", "userId": "39"}

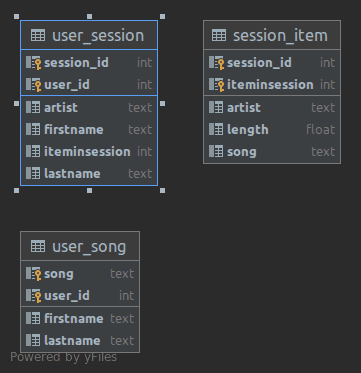

Schema

Fact Table

songplays - records in log data associated with song plays i.e. records with page NextSong

songplay_id, start_time, user_id, level, song_id, artist_id, session_id, location, user_agent

Dimension Tables

user_session - users session in the app

session_id,user_id,artist, firstname, iteminsession, lastname

user_songs - user play songs

song, user_id, firstname, lastname

session_item - item in session

session_id,iteminsession, artist, length, song

Project Files

sql_queries.py -> contains sql queries for dropping and creating fact and dimension tables. Also, contains insertion query template.

create_tables.py -> contains code for setting up database. Running this file creates sparkify and also creates the fact and dimension tables.

modeling-data.ipynb -> a jupyter notebook for testing.

etl.py -> read and process file in event_data directory

lib.py -> import library that used

event_datefile_new.csv -> output etl process

Environment

Python 3.6 or above

Apache Cassandra

cassandra - Cassandra database adapter for Python

How to run

Run the drive program main.py as below.

python main.py

The create_tables.py and etl.py file can also be run independently as below:

python create_tables.py
python etl.py

Reference:

Cassandra

Cassandra Documentation

Tri Juhari
